MK93 Machine Gun Mount
The MK93 Machine Gun Mount is the standard heavy machine gun or automatic grenade launcher mount used throughout the US Military and NATO. It is a dual use mount that supports both the M2HB/M3 (.50 Cal) Machine Gun and the MK19 MOD3 40mm Automatic Grenade Launcher. The MK93 supports either 100/200 round .50 Cal ammo can holder or 40mm ammo can holder. MK93 mounts are used in conjunction with the Universal Pintle Adapter (UPA), Traverse and Elevation Mechanism (T&E), and Bearing Sleeve which attaches to the socket on the vehicle turret A-Frame.
MK93 Machine Gun Mount
Click Photo to Expand Details

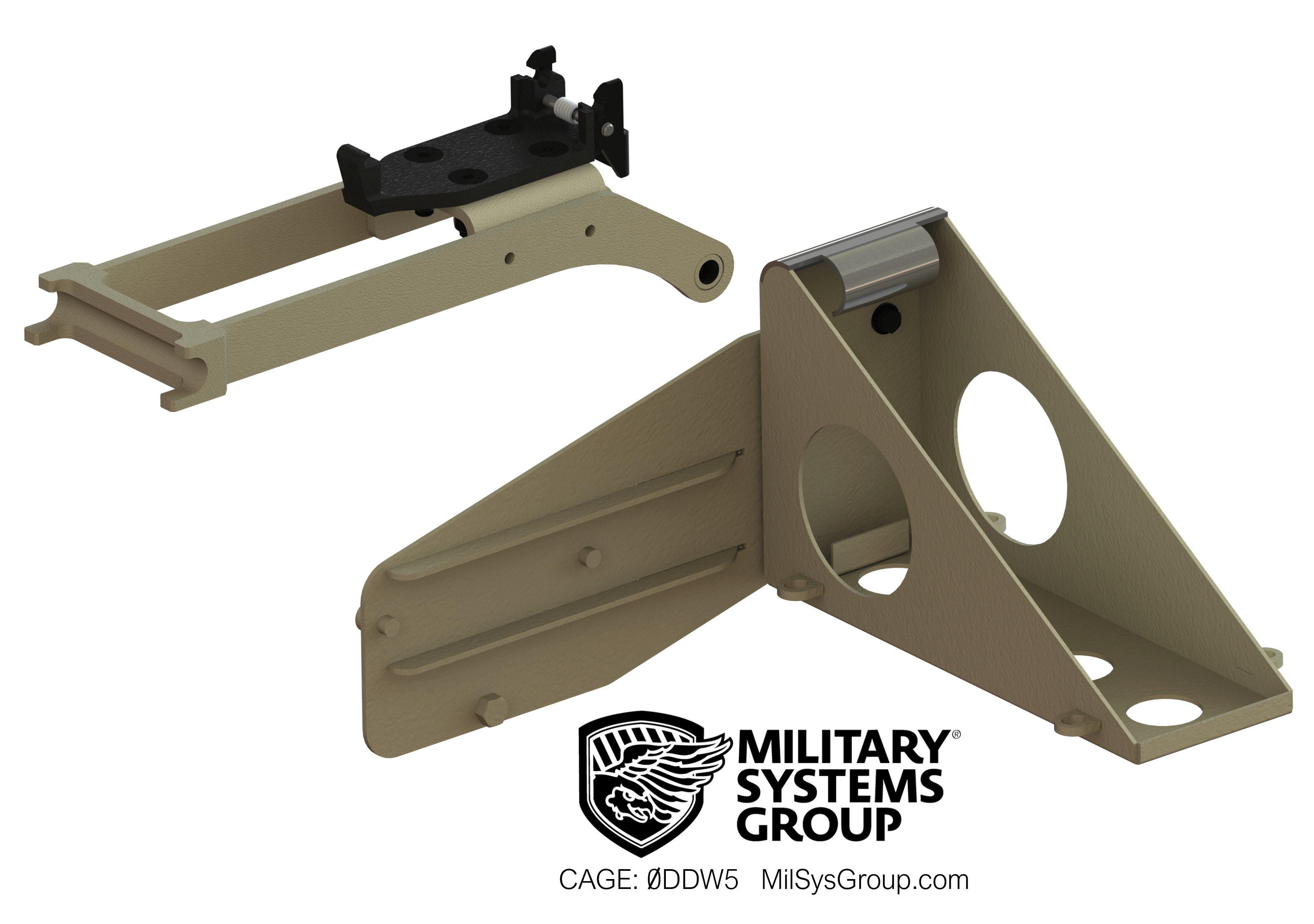

MK93 M60 Adapter Kit
The M60 Adapter Kit allows the M60 machine gun to be installed in the MK93 machine gun mount. No tools are required for installation. The adapter kit drops into the MK93 mount and secures with locking pins.
MK93 M60 Adapter Kit
Click Photo to Expand Details

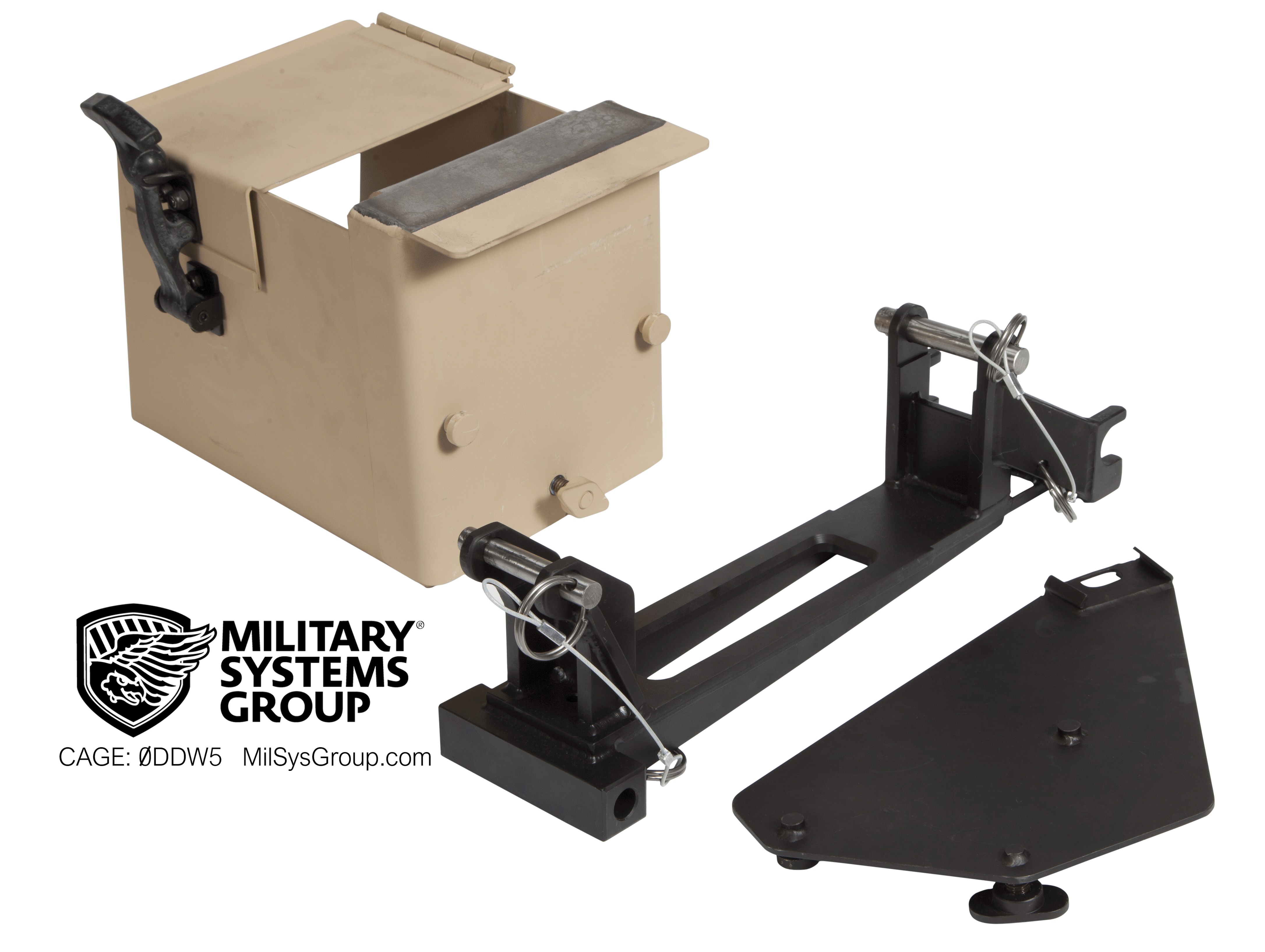

- Part No. M35-800
- The M240/M249 Adapter Kit allows the M240/ MAG58 and M249/MK46/MINIMI families to be used with the MK93 gun mount. The included ammo can holder accommodates a standard NATO 200 rd 7.62mm ammo can. The Dual-Use Ammo Can Holder (Part No. M35-413) is designed for the MK93 and holds the NATO standard can holding either 40 rds 40mm or 100 rds .50 Cal.
M249/M240 Adapter Kit
Click Photo to Expand Details
MK 93 Tri-Rail Light Bracket
The MK93 Tri-Rail Light Bracket easily attaches to
the MK93 Machine Gun Mount and supports the
M2HB/M3(.50 Cal) Machine Gun and the MK19 MOD3
40mm Automatic Grenade Launcher. The Tri-Rail Light
Bracket holds optics (white light, IR lights, and lasers)
while protecting them from the weapon recoil. The
under-barrel design facilitates barrel changes, including
the new Quick Change Barrel. The optimized design
minimizes weight and barrel heat retention. Easy
installation with wrench.
MK 93 Tri-Rail Light Bracket
Click Photo to Expand Details
- Part No. M38-100
- The PKM adapter kit is designed to allow the MK93 to be used with the PKM family of weapons. Installation requires no tools.
MK 93 PKM Adapter Kit
Click Photo to Expand Details
- Part No. M98-011
- The Universal Pintle Adapter (UPA) is typically used in vehicle turrets/ring mounts that have a Bearing Sleeve. The UPA installs in the Bearing Sleeve and accepts any gun mount that has both a standard small pintle, such as the MK93 or M35 Medium Machine Gun Vehicle Mount (MMGVM).
Universal Pintle Adapter (UPA)
Click Photo to Expand Details
- Part No. M98-012-REVA
- The Traverse and Elevation Mechanism (T&E) controls the traverse and elevation of the weapon system, facilitating accurate fire. The MSG T&E improves upon the U.S. Government design by allowing the T&E to remain attached while in the unlocked position. The USMC designated MSG’s T&E as its standard issue as part of the M35 mount.
Traverse Elevation Mechanism
Click Photo to Expand Details

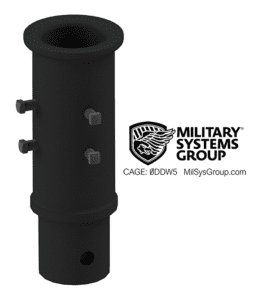

Bearing Sleeve
- Part No. M70-299-BLOX
- The Bearing Sleeve is designed to mount into the A-Frame on a vehicle’s turret. It accepts the Universal Pintle Adapter (UPA) or other components that have a standard large pintle. MSG produces two bearing sleeve sizes to accommodate vehicle/ gunner requirements
Bearing Sleeve
Click Photo to Expand Details
- Part No. M36-413
- This ammunition can holder is identical to the standard-issue MK93 100 round .50 Cal ammo can holder except that it also accommodates a standard NATO 200 round 7.62mm ammo can when used with the MSG M240/M249 adapter.
100 Round .50 Cal and 7.62mm Ammunition Can Holder
Click Photo to Expand Details
Can Holder
- Part No. M35-413
- This ammunition can holder, used with the MK93 Gun Mount, accommodates both the 32 rd 40mm and NATO 100 rd .50 caliber ammo cans.
Dual Use Ammunition Can Holder
Click Photo to Expand Details
[SA10 Swing Arm Compatible]
- Part No. M24-095
- The H24-6 has the following features:
- an SA10 travel lock block
- front and rear weapon mounting pins
- mounting clip for a NATO 200 round 5.56mm ammunition drum
- ammunition can holder for a NATO 200 round 7.62mm ammunition can
- grab handle that aids in weapon movement
- standard NATO small tapered pintle
H24-6 Machine Gun Mount [SA10 Swing Arm Compatible]
Click Photo to Expand Details
H24-6 With Tool Kit and Bag
- Part No. K24-095
- H24-6 machine gun weapon’s mount with all the same features as the M24-095 with the addition of a tool kit and carrying bag.
H24-6 With Tool Kit and Bag
Click Photo to Expand Details
- Part No. H24-6-MOD1
- The MOD1 mount has each of the features above with the following additions:
- Single pin weapon mounting kit (in lieu of front and rear mounting pins)
- 7.62mm brass deflector
H24-6 MOD1 Machine Gun Mount
Click Photo to Expand Details
- Part No. H24-6-MOD2
- The MOD2 incorporates each of the features of the MOD1 with the following modifications:
- 7.62mm Inline Ammunition Can Holder (that runs parallel to the weapon)
- Grab handle removed
H24-6 MOD2 Machine Gun Mount
Click Photo to Expand Details
- Part No. M24-012
- MOD1’s ammunition can holder is perpendicular to the weapon and comes with a grab handle.
H24-12 MOD1 Machine Gun Mount w/ Standard Ammo Can
Click Photo to Expand Details
H24-12 MOD2 Machine Gun Mount w/ Inline Ammo Can
- Part No. M24-013
- MOD2 has an inline ammunition can holder which is parallel to the weapon. The parallel ammunition can reduce the width by over 6”, which greatly increases the range of motion, especially when firing from a curbside A- or B-pillar position.
H24-12 MOD2 Machine Gun Mount w/ Inline Ammo Can
Click Photo to Expand Details
- Part No. K24-026-OGPK
- The H24 OGPK is a modified H24 cradle that is designed to work in the U.S. Army’s Objective Gunners Protection Kit (OGPK). The design moves the mount and weapon forward, providing the gunner optimal ergonomics while moving the weapon muzzle outside the armor protection.
H24 OGPK
Click Photo to Expand Details
- Part No. M24-029
- The Optimized Turret Mount (OTM) is optimized for use on a turret, pedestal, guard tower, or ground tripod systems. The H24 OTM cradle has two adapter brackets, a front UPA bracket, and a rear T&E bracket. It allows the gunner to use the T&E mechanism, as intended, with a single click equating to a one mil adjustment. It has the following features:
- Single pin weapon mounting kit (simplifies weapon installation and removal)
- 7.62mm brass deflector
- Mounting clip for a NATO 200 rd 5.56mm ammunition drum
- Ammunition can holder for a NATO 200 rd 7.62mm ammunition can
- Standard NATO small tapered pintle
H24 OTM
Click Photo to Expand Details
- Part No. M25-800
- The H60-6 machine gun mount accepts the M60/MK43 family of machine guns and is specifically designed for use with the SA10 swing arm. MSG designed features to rapidly insert and remove the weapon and safeguards to control both traverse and elevation. The mount comes with a 200 rd NATO 7.62mm ammunition can holder.
H60-6 Machine Gun Mount
Click Photo to Expand Details
H24-7 Machine Gun Mount & SA7 System
- The H24-7 mount is used in conjunction with the SA7 swing arm for the M249 SAW, MK46, MINIMI, M240, MK48, and MAG58 machine guns. It is designed to accept heavy armor shields with light or medium machine guns. The H24-7 comes with a 200 rd 7.62mm ammunition can holder, 200 rd 5.56mm ammunition drum attachment clip, grab handle, SA7 pintle, and travel lock.
- The SA7 Swing Arm, also pictured, also allows the use of a heavy armor shield. As designed, the SA7 system has train stops to limit fields of fire.
- In the HMMWV example shown, the system mounts to the vehicle with Adjustable Height Pintle Posts. However, the system can be used with other mounting brackets for other applications, including guard towers.
H24-7 Machine Gun Mount & SA7 System
Click Photo to Expand Details
-
Part No. M37-100
-
The MSG DShK Gun Mount was designed for strength, accuracy, and modularity. It is the only DShK mount currently on the market that can be used wherever a MK93 can be used, making it highly versatile and modular. The mount incorporates the charging handle, similar to Eastern Bloc versions. All variants of the MSG DShK mount accept the MSG PKM Adapter. The MSG DShK Gun Mount family includes:
- An optimized vehicle turret mount that drops into a Universal Pintle Adapter (UPA) for use with a Traverse & Elevation Mechanism (T&E).
- A naval configuration that adapts to a standard naval MK16 MOD2/9 Tripod or MK16 MOD8 Stand and can incorporate an armor shield.
- A more “traditional” Russian-style DShK mount that drops into the Russian ground tripod and incorporates a cradle friction lock to secure the cradle to the carriage.
In addition, the MSG Tri-Rail Light Bracket can be attached to all variants of the DShK mount.
DShK Mount
Click Photo to Expand Details
- Part No. M38-240
- The PKM adapter is designed to work in conjunction with the MSG DShK mount, allowing the operator to use one mount with multiple weapon systems without the use of tools.
DShK PKM Adapter
Click Photo to Expand Details
- Part No. M38-212
- MSG’s PKM-12 Machine Gun Mount is designed for use with the SA12 Swing Arms. It accepts the PK/PKM family of 7.62 x 54mm Machine Guns. The mount‘s ammunition can holder holds the 200 or 400 round 7.62 x 54mm ammunition cans.
PKM-12 Mount [SA12 Configuration]
Click Photo to Expand Details
PKM-10 Mount [SA4/SA10 Configuration]
- Part No. M38-210
- This version of MSG’s PKM Machine Gun Mount is designed for use with the SA4 and SA10 Swing Arms. It accepts the PKM family of 7.62 x 54mm Machine Guns. The mount‘s ammunition can holder accepts the 200 rd or 400 rd 7.62 x 54mm ammo cans.
PKM-10 Mount [SA4/SA10 Configuration]
Click Photo to Expand Details
- Part No. M38-211
- The PKM OTM (Optimized Turret Mount) is designed to work with a Traverse and Elevation and Universal Pintle Adapter. Besides mounting the PKM, it has all of the advantages of the H24 OTM.
PKM OTM
Click Photo to Expand Details
- Part No. M38-700
- The PKM-7 Mount is designed to work with the SA7 swing arm and supports customer-designated train limits/stops. The mount allows for the attachment of an armored gun shield bracket. The mount’s ammunition can holder accepts the 7.62x54mm 200 and 400 rd ammunition cans.
- The system pictured below was developed for the Afghan National Army and Police for their Armored HMMWVs. Over 20,000 systems are currently in service.
PKM-7 Mount
Click Photo to Expand Details
